SPECIFICATIONS

Brand Name: LONGER3D

Certification: CE,ce

Engraving Area: 400x400mm

Hign-concerned Chemical: None

Is Smart Device: YES

Laser Power: 10w

Model Number: RAY5

Origin: Mainland China

item 1: Ray5 5W Laser Engraver

item 2: Ray5 10W Laser Engraver

item 3: Ray5 20W Laser Engraver

LONGER Ray5 5W / 10W / 20W Laser Engraver Engraving Cutting Machine Quick Focus Wifi Control 3.5inch Touch Screen

About RAY5 5W:

Laser Technology: Dioser Technology

Working Area: 400x400mm (15.75x15.75 inch)

Laser Wavelength: 450nm

Focal Length: Fixed Focus-30mm

Laser Spot Size: 0.08x0.08mm

Laser Optical Output Power: 5W

Z Axis-Height Range: Up to 47mm

Fastest Working Speed: 10000mm/min

Engraver Output: DC12V / 5A

Engraver Input: AC 110-240V

Software: LaserGRBL & LightBurn

Connection: USB / TF Card / Wifi

Laser Engraver Size: 586 x 583 x 176.5mm (23.07x22.95x6.95 inch)

Package Size: 621x299 x 127mm

Carving and cutting materials: Wood, metal, acrylic, glass, leather, etc

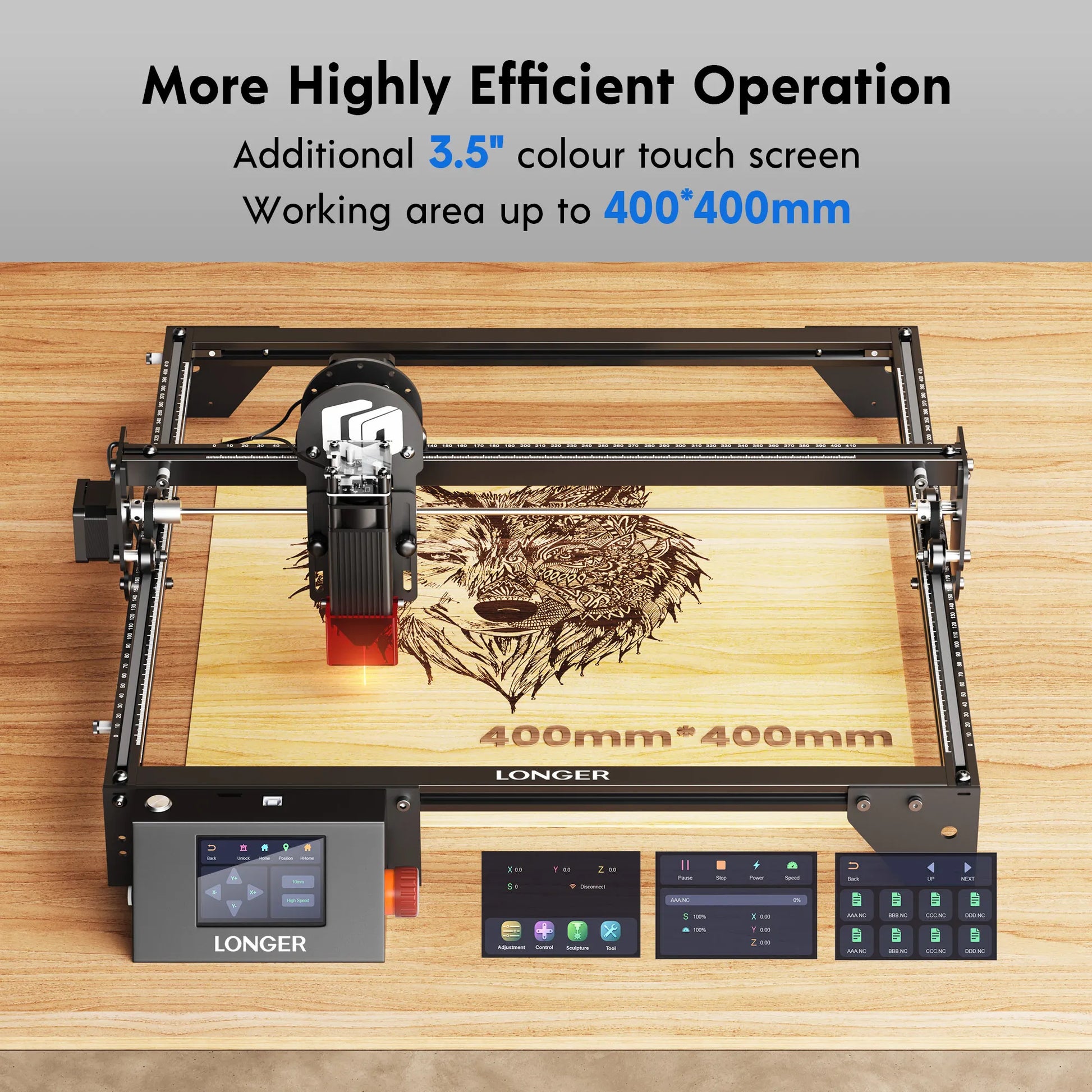

3.5" COLORFUL TOUCH SCREEN & BUILT-IN CONTROLLER

Save the gcode file into TF card and engraving without computer connected.

LATEST FAC LASER TEHCNOLOGY

Comes with thin and high density laser beam for high energy.

32BIT CHIPSET, STRONGER FASTER SMOOTHER

BUILT IN 32 BIT CHIPSET AND SUPPORT WEB PAGE ANDAPPAPPROACH THROUGH THE WIFI CON-NECTION .

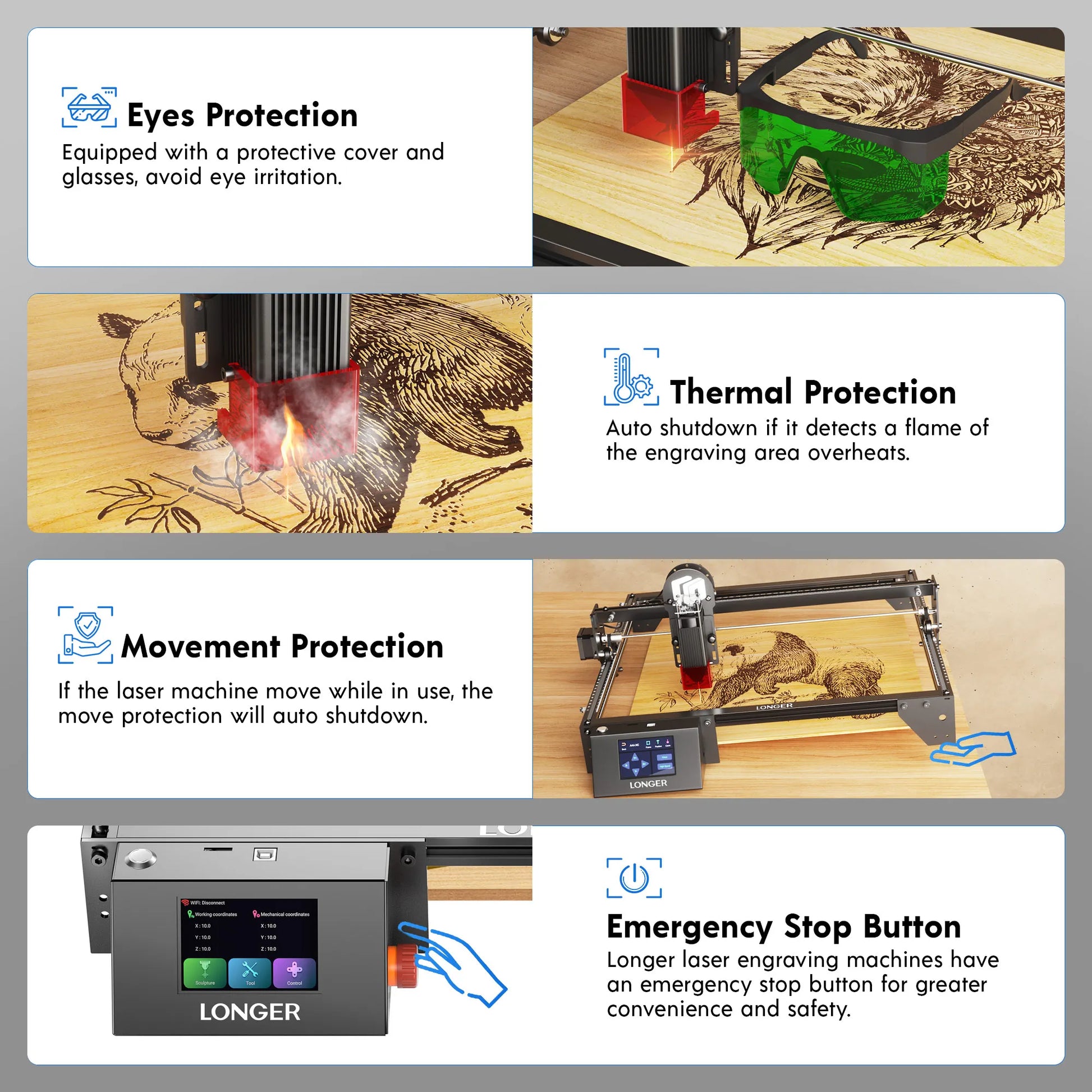

MOVE PROTECTION

lf the machine is moved while in use, Move protection will initiate auto-shutdown for personal safety.

THERMAL PROTECTION

Thermal protection initiates an auto-shutdown if it detects a flame or the engraving area overheats.

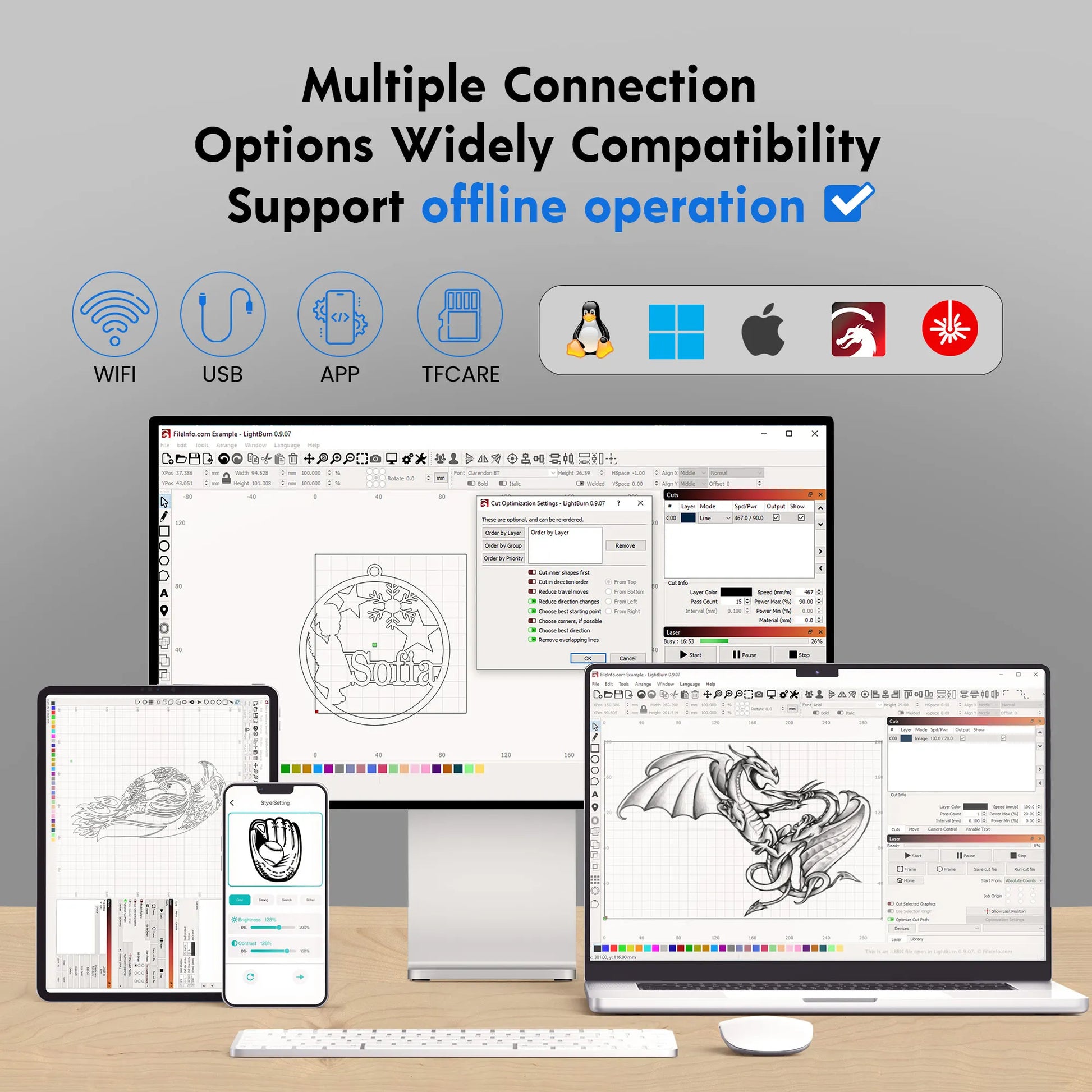

COMPATIBLE WITH LIGHTBURN & LASERGRBL

RAY5 is compatible with free engraving software LaserGRBL and paid LightBurn software. lt supports import with BMP, JPG, PNG, DXF, Al, SVG etc file format.

EYE PROTECTION & EASY TO DISPEL SMOKE

lsolate 99% of laser light to protect our eyes, Smoke will be dispelled from the back panel notch to prolong the lifespan of laser module

POWER BUTTON

Comes with power switch to turn engraver on or off and it's able to use as emergency

UPGRADABLE FOR POWERFUL LASER

The power supply and mainboard support an upgrade to a more powerful 8W/10W laser module.

About Longer Laser Engraver RAY5 10W

Features:

【1】10W Laser Module - Remarkable improvements realized by the poly-lens spot com pression laser technology, 10000mm/min Max.engraving speed.

【2】Quick Focus & Precisely Spot on - The focusing system is comprised of a fixed-focus lens and a focusing facilitator. Slide down the facilitator for fast focusing and uplift it once the focusing is finished. Preview function for quick and accurate engraving area location and continuous blue light emissions from the laser head will indicate the engraving area.

【3】Stable Structure & Engraving - Anodized aluminum alloys, L-shape silicone footpads and an 8 mm steel rail ensure precision and smooth movement. And a built-in leveler prevents from losing, and it is set for measuring whether the machine is properly placed.

【4】Safe & Healthier - The laser safety protective cover meets

Product parameters

Model Number: Ray5 10W

Laser Technology: Dioser Technology

Working Area: 400x400mm (15.75x15.75 inch)

Laser Wavelength: 450nm

Focal Length: Fixed Focus-50mm

Laser Spot Size: 0.06x0.06mm

Laser Optical Output Power: 10W

Z Axis-Height Range: Up to 47mm

Fastest Working Speed: 10000mm/min

Engraver Output: DC12V / 5A

Engraver Input: AC 110-240V

Software: LaserGRBL & LightBurn

Connection: USB / TF Card / Wifi

Laser Engraver Size: 586 x 583 x 176.5mm (23.07x22.95x6.95 inch)

Package Size: 621x299 x 127mm

Carving and cutting materials: 20mm wood, 30mm acrylic, metal, glass, leather, etc

Optimized Focus for Cutting：

Cut 20mm wood and 20mm acrylic with optimized focal design, the stronger the light focus, the stronger the cutting ability

10w & 5w Comparison:

10W's cutting ablity is stronger than 5w, which can cut wood up to 20mm, acrylic 30mm.

Ultra-fine Laser Spot :

1.Compressed laser technology;

2.0.06*0.06mm2 Laser Spot.

Powerful Cutting:

The 10W laser head adopts compressed double beam technology: the new technology makes the laser power larger, the spot (0.06mm) and the laser beam are finer, the laser focal length is longer (50mm), and the energy Higher density, stronger cutting ability, can easily cut 20mm pine board.

Customer Feedback:

Stable EngravingStable structure design could engrave well when run in max speed.The lines are smooth and clear, and produces less sawtooth.

Wide Applicable Materials :

Support engraving materials： All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal. Support cutting materials： Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.)

About RAY5 20W:

Product parameters

Model Number: Ray5 20W

Output laser Power: 22-24W

Laser Technology: Dioser Technology

Working Area: 375x375 mm (14.76x14.76 inch)

Laser Wavelength: 450 - 460 nm

Focal Length: Fixed Focus-40mm

Laser Spot Size: 0.08x0.10mm

Laser Optical Output Power: 18 - 21 W

Power Max Consumption: 120W

Z Axis-Height Range : Up to 47mm

Fastest Working Speed: 10000mm/min

limit switches: Yes

Air assist interface: Yes

Engraver Output: DC12V / 5A

Engraver Input: AC 110-240V

Software: LaserGRBL & LightBurn

Connection: USB / TF Card / Wifi

Laser Engraver Size: 610 x 67 x 200 mm(24.02 x 26.38 x 7.87 inch)

Package Size: 621 x 347 x 127mm(24.45 x 13.66 x 5 inch)

Carving and cutting materials: Basswood, leather, ceramics, glass, stone, metal, etc

Cutting parameters one-pass:10mm basswood, 15mm pine, 8mm acrylic, 0.05mm stainless steel

20W Powerful Cutting

The 22-24W optical output laser modules largely boosts the cutting capacity of the Ray5.

It cuts through 25mm wood and 35mm acrylic by multiple passes,

and cut 0.002"/0.05mm stainless steel.

Higher Accuracy Cutting & 0.08*0.1mm² High Accuracy Laser Spot

The Ray5 is equipped with an ultra-fine 0.08 x 0.1mm focus point,

producing thinner lines, clearer texture, and more precise artwork .

More Productivity

More power leads to faster engraving and cutting, and a wider variety of materials that you can use.

Ideal for professional work, workshops, or factories .

Multi-Color Engraving

The 22-24W laser instantly oxidizes metal, bringing vibrant colors to fulfill your creative needs.

X/Y-axis Limit Switches

Limit switches can accurately locate the position of the laser module,

allowing for a safety feature where the Ray5 will trigger an alarm if it detects the laser is moving in the wrong direction.

Safety Measures

Installed Move/Thermal/Offline/Motionless/Eye Protections.

Laser Lens Protection

The 22-24W model is equipped with a replaceable lens and dust-proof hood which prevents smoke from polluting the lens.
